Barcode Scanner

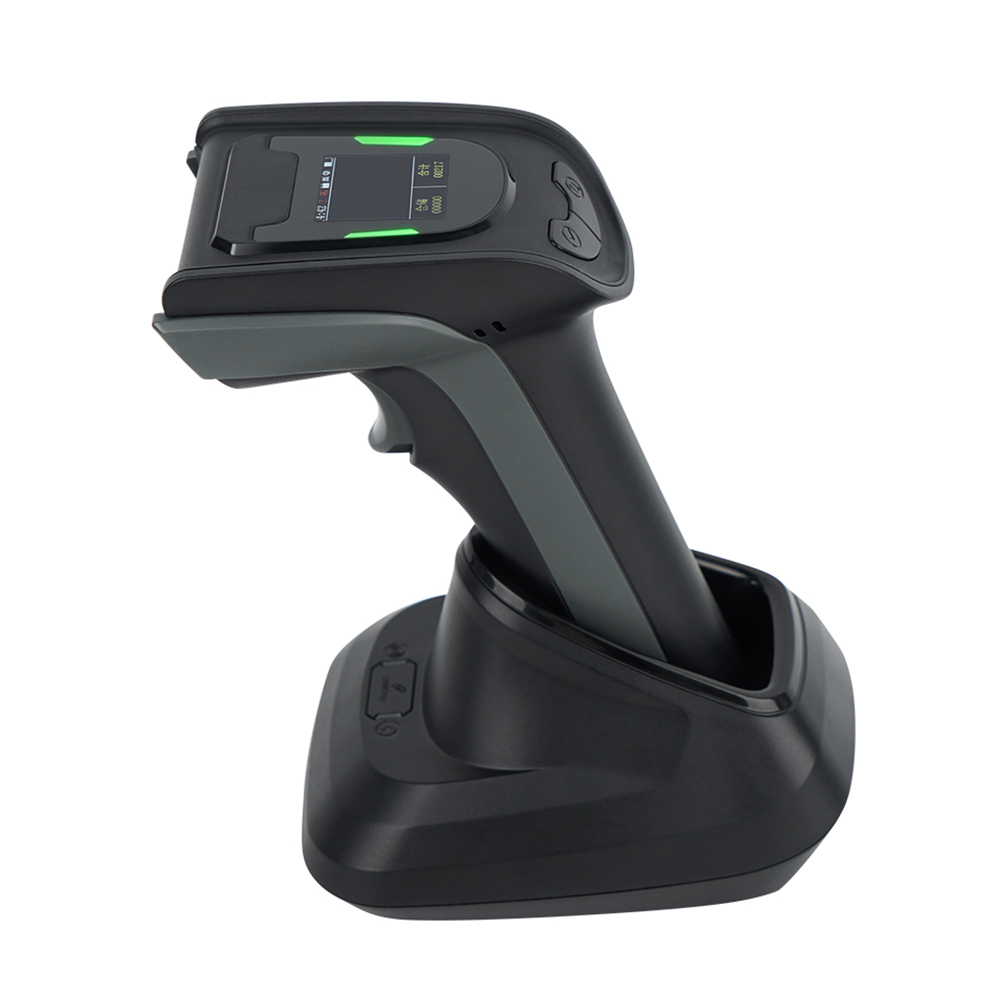

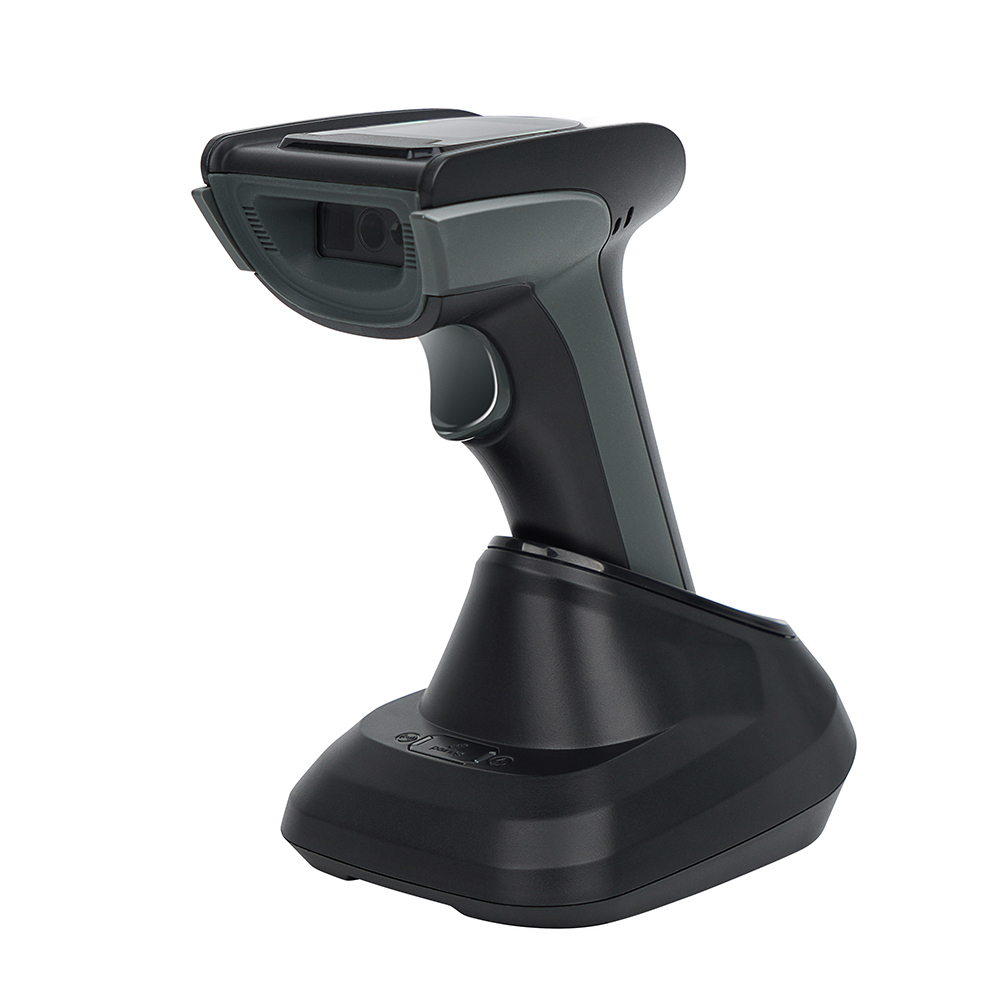

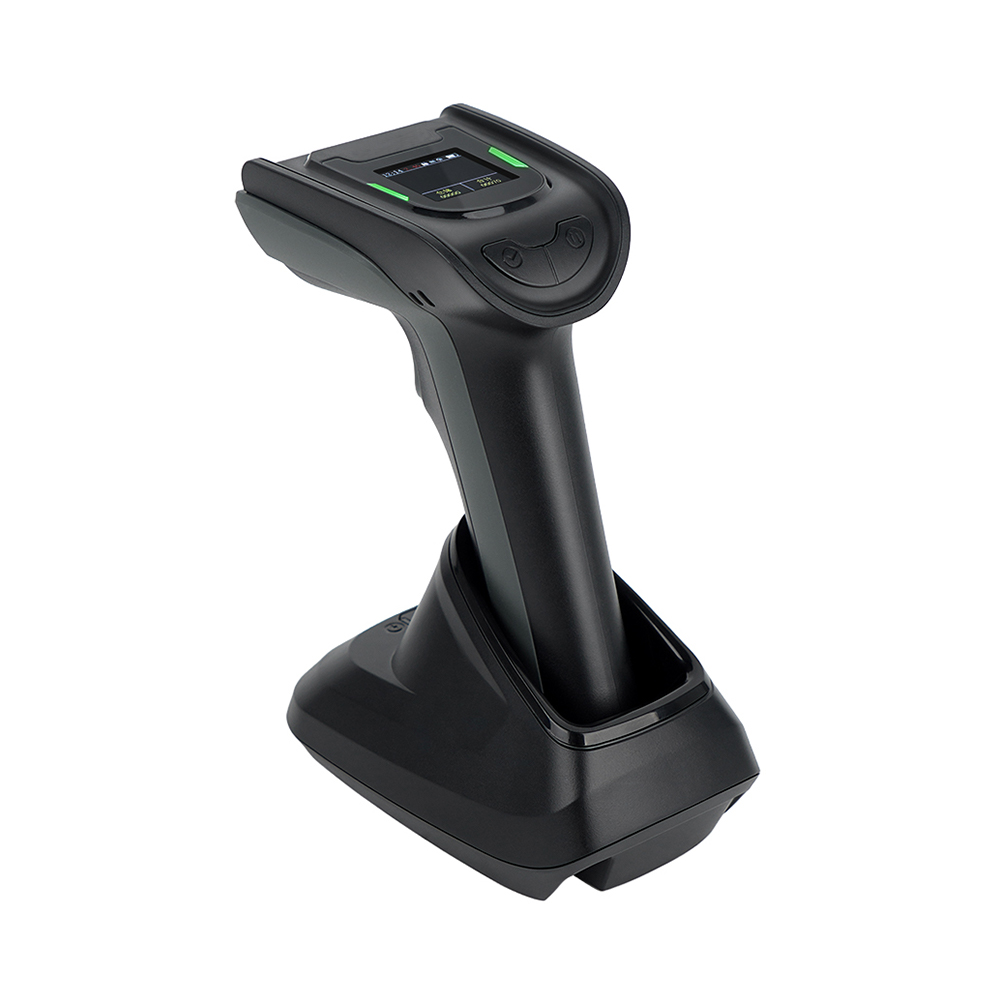

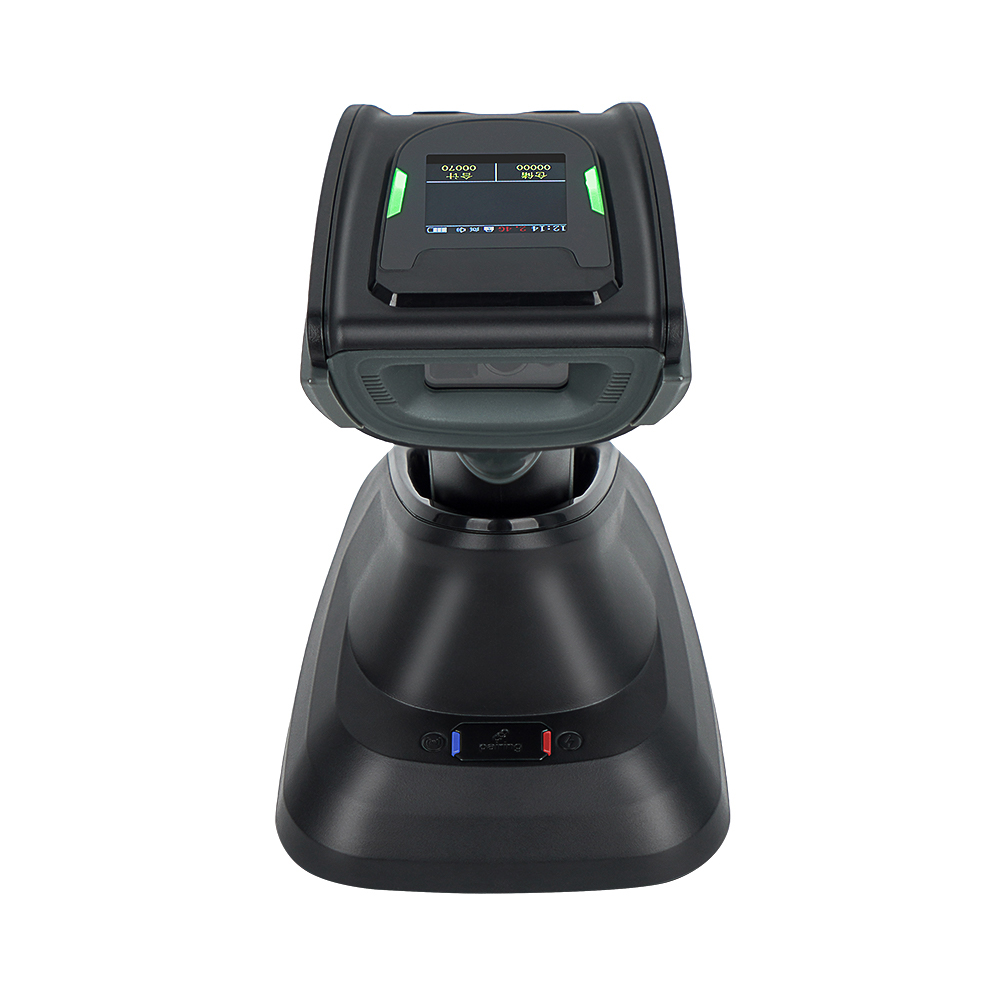

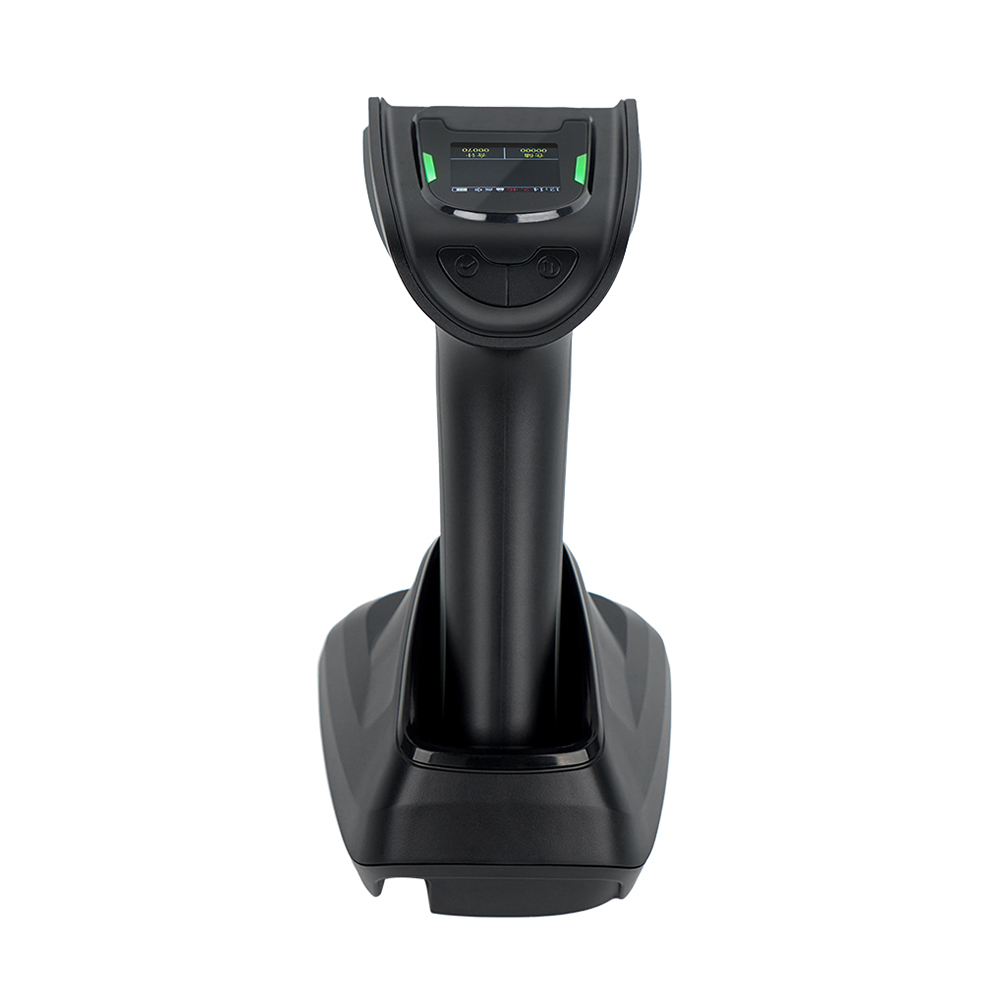

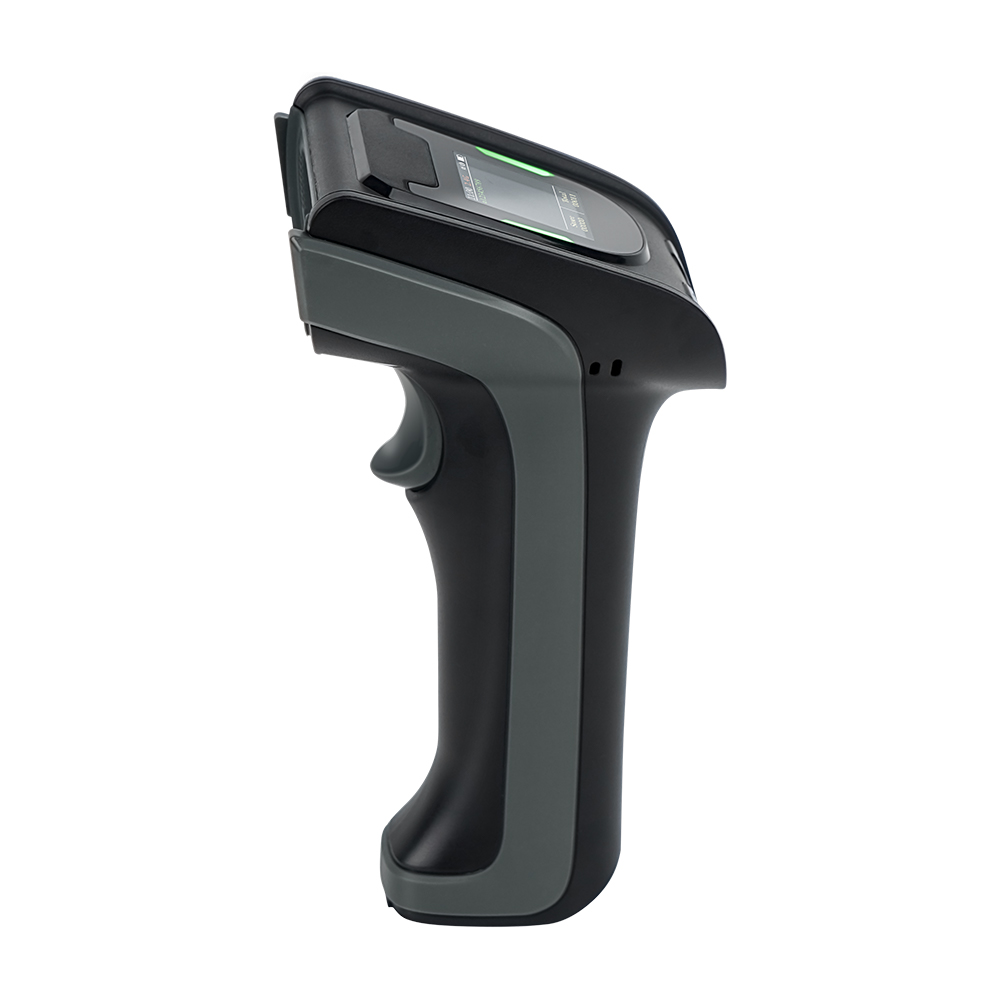

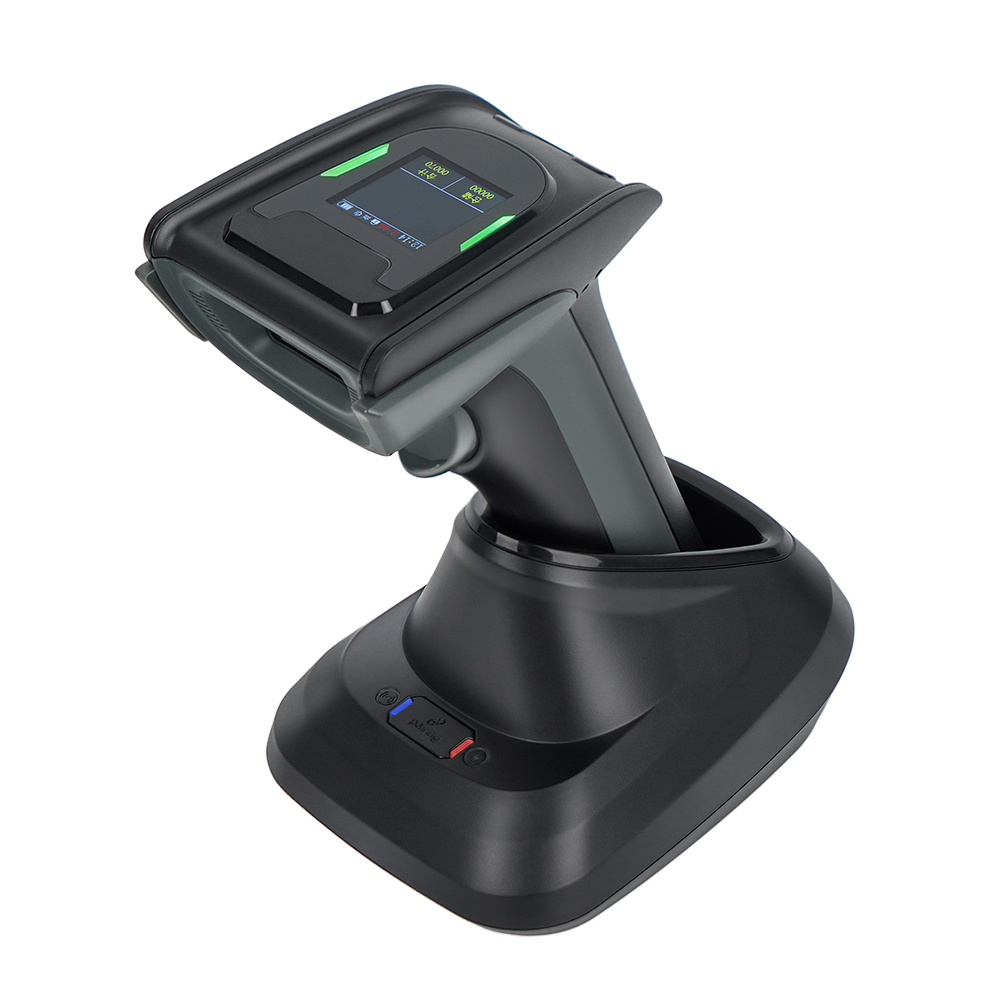

DS220DT/2D 2.4G + Bluetooth Barcode Scanner
Identify the various 1D, 2D, screen codes, etc
Name | DS220DT/2D 2.4G + Bluetooth Barcode Scanner | ||||
use | Identify the various 1D, 2D, screen codes, etc | ||||
Performance Parameters | |||||
Light type | White lighting, green aiming light | ||||
Decoding Capability | 1D | EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, CodaBar, MSI, RSS-14, RSS-Ltd, RSS-Expand, Standard 2 of 5, Plessey, GS1 Composit. | |||
2D | PDF417, QR Code, Data Matrix, Micro QR. | ||||
Scanning Principle | cmos | ||||
Resolution | 640pixels (H)×480 pixels (V) | ||||
Interface | Base: USB-HID, USB-COM; Bluetooth: HID, BLE | ||||
Scanning Depth of Field | EAN 13 50mm-240mm(13mil); Code39 45mm-160mm(5mil); QR Code 30mm-160mm(15mil); Code 128 40mm-165mm(5mil). | Scanner size | 69mm*83mm*164mm | ||
Screen size | 29.5mm*36.5mm | ||||
Material | ABS+PC | ||||
Cable | 0.8M straight | ||||
Scan Angle | Elevation | ±65° | Operating Temperature | -20℃~50℃ | |
Rotation | ±360° | Storage Temperature | -40℃~70℃ | ||
Deflection | ±65° | Relative Humidity | 5%~95% (Non-condensing) | ||
Contrast | ≥20% | Ambient Lighting | 0~100000LUX | ||
Bit Error Rate | Less than 1/5 million | Drop Resistance | Withstands multiple 1.5 meter drops to concrete | ||
Wireless Transmission Distance | 100 meters (open distance) | ||||
Voltage | DC 5V±5% | ||||
Scan Mode | Manual/Continuous/Auto-inductive Scanning | Working Current | 120mA | ||

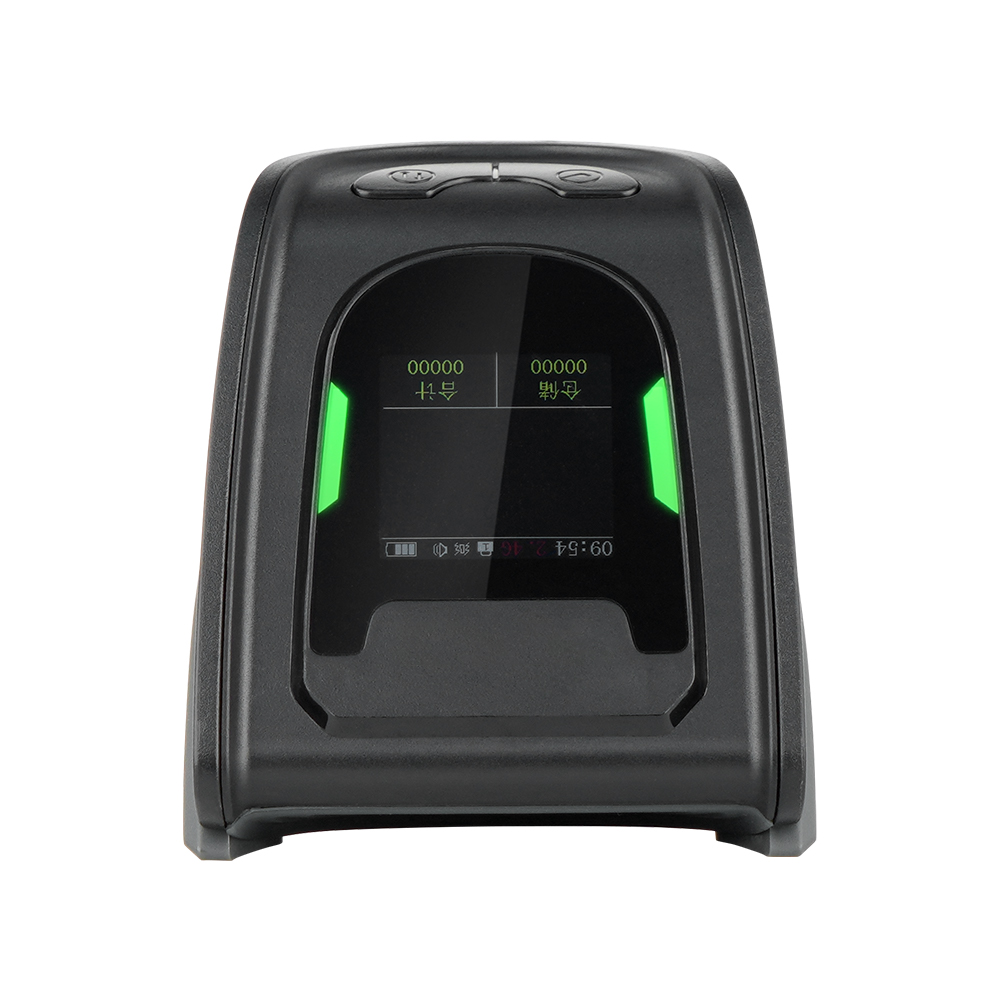

Screen functions | 1. Real time viewing of barcode data; 2. Real time viewing of stored data; 3. Real time monitoring of battery level; 4. Real time time display; 5. The scanning gun can be set through the screen | Standby Current | 0mA(Standby means cutting off battery power) | ||
Charging Time | 5-6h | ||||
Working hours | The scanning gun scans codes continuously for 1 second, with a working time of 7 hours and a scanning count of 2.5W times | ||||
Lithium Battery | 2200mA | ||||
Charging Mode | Place the base for direct charging | ||||
