Identify the various 1D, 2D, screen codes, etc.

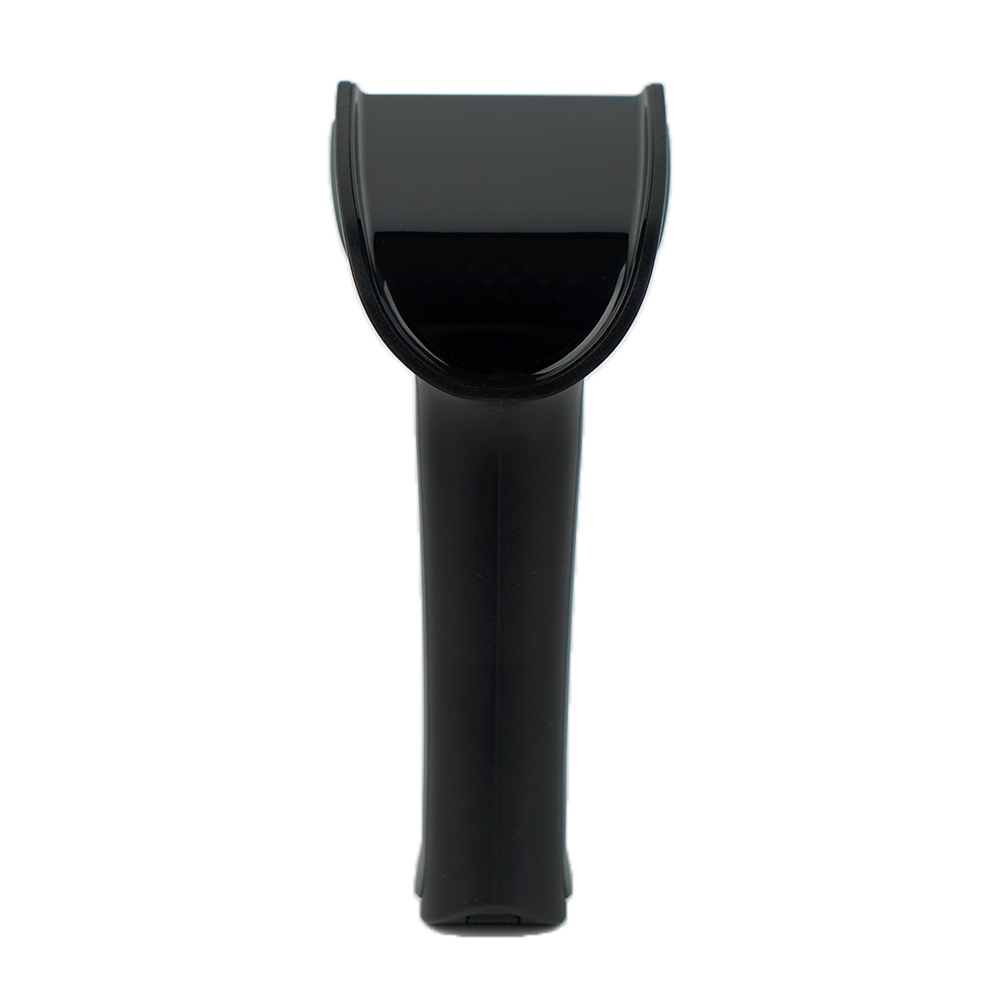

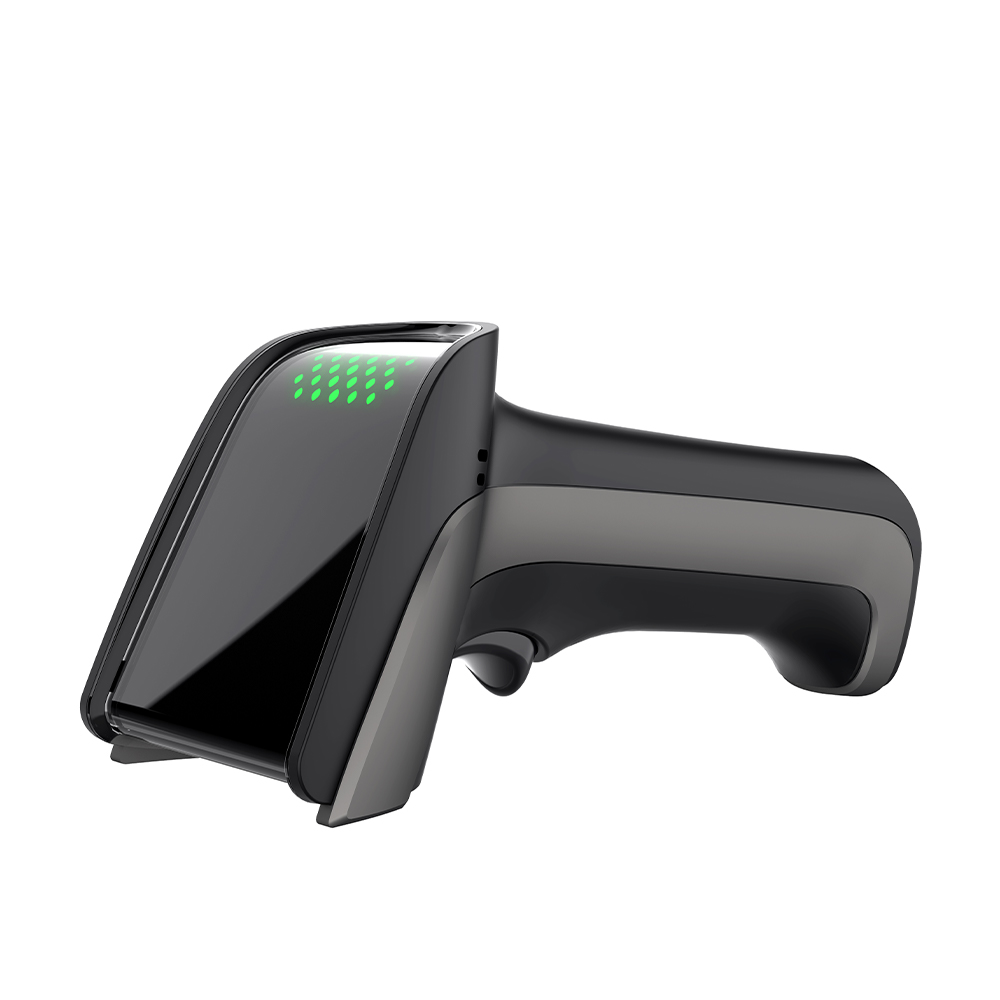

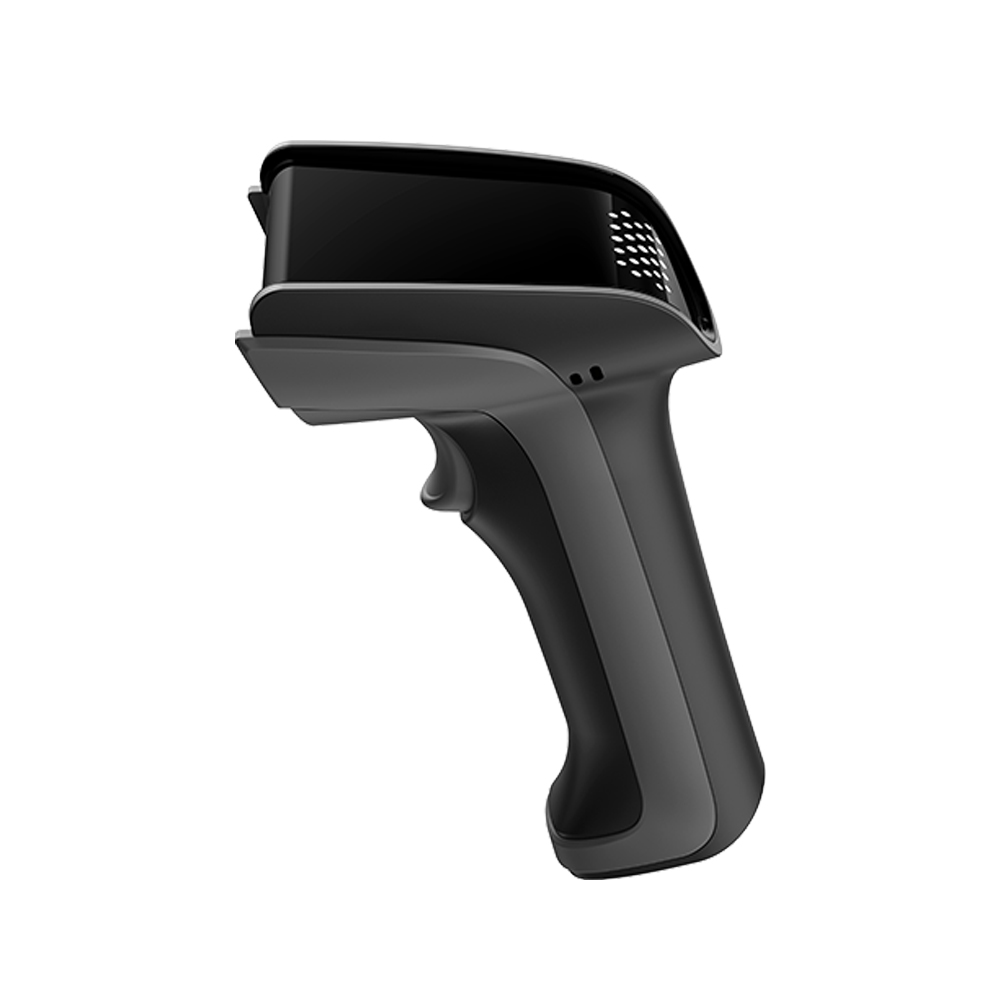

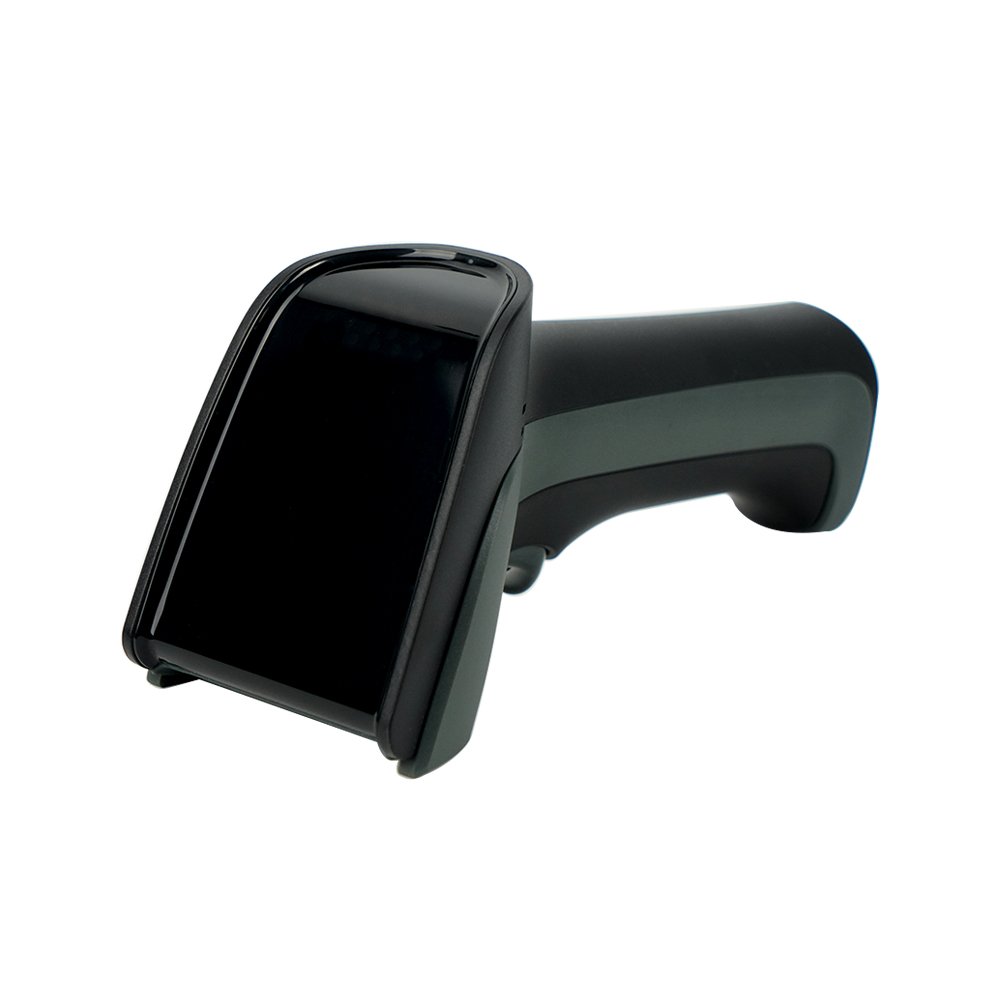

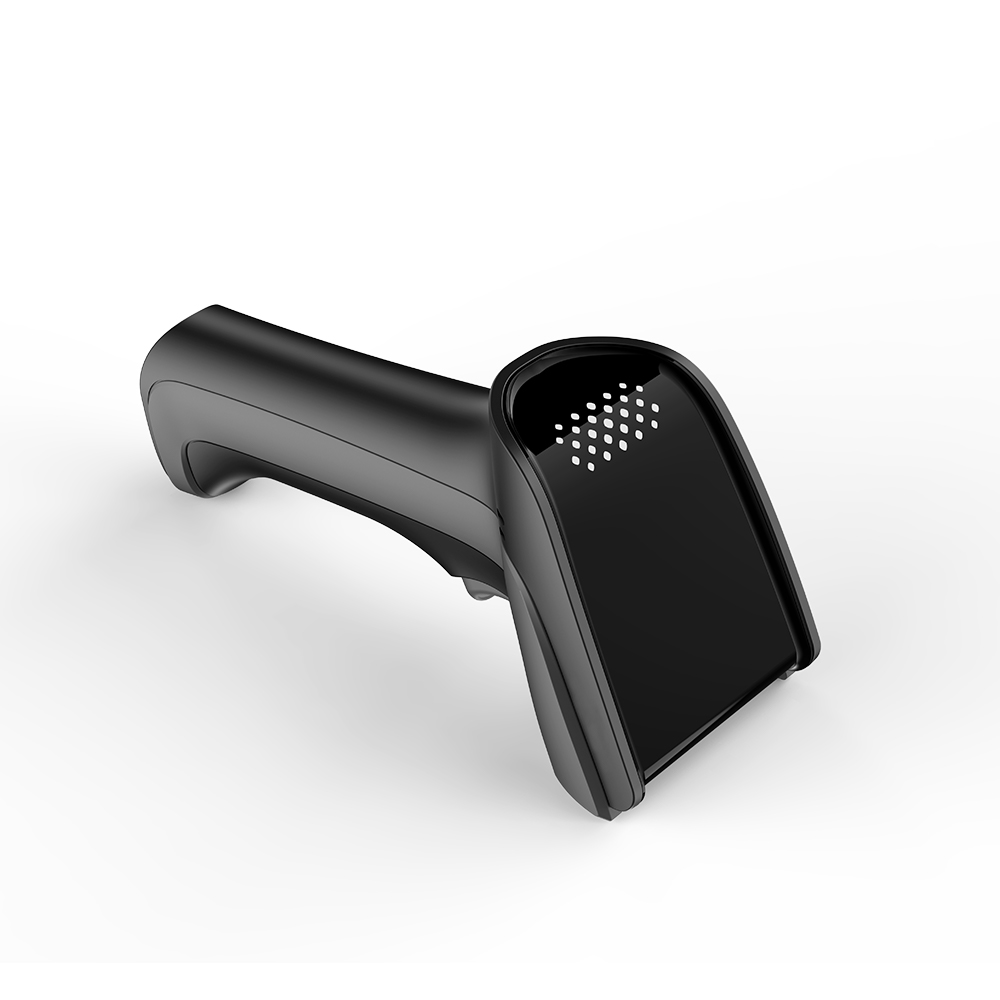

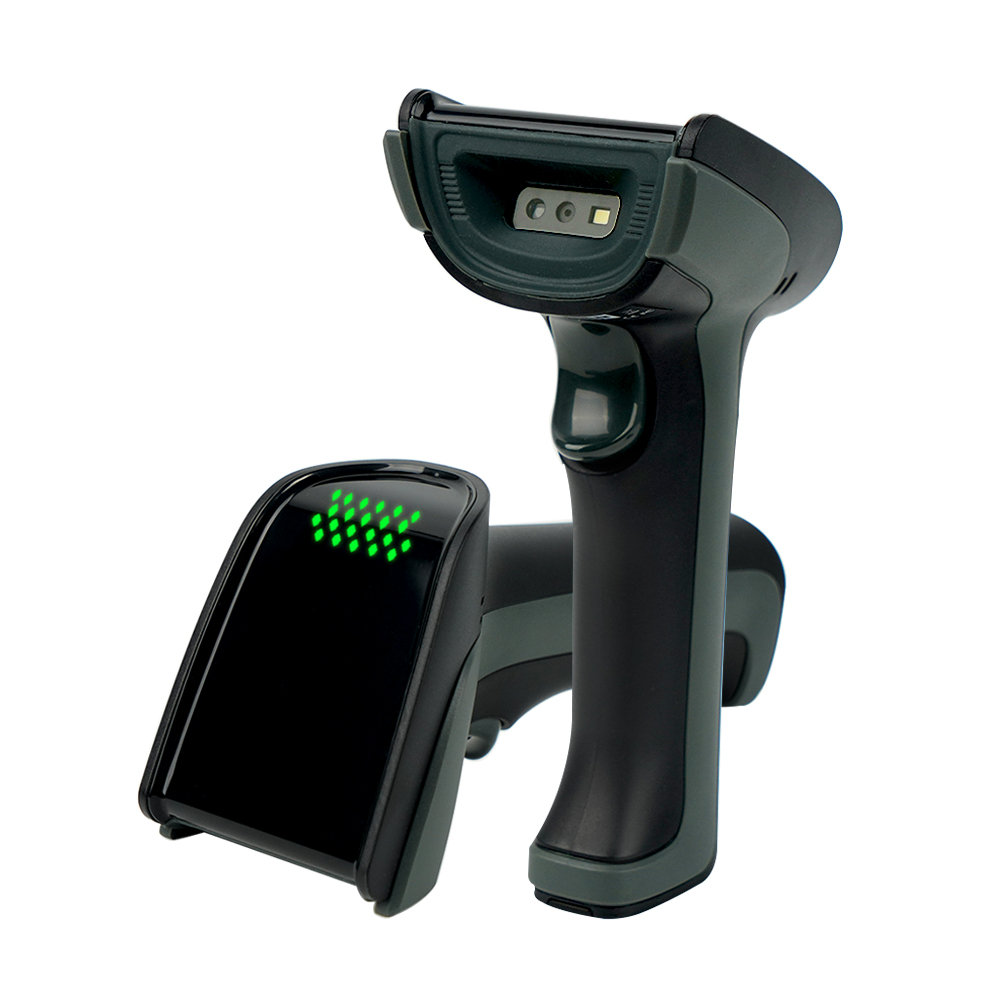

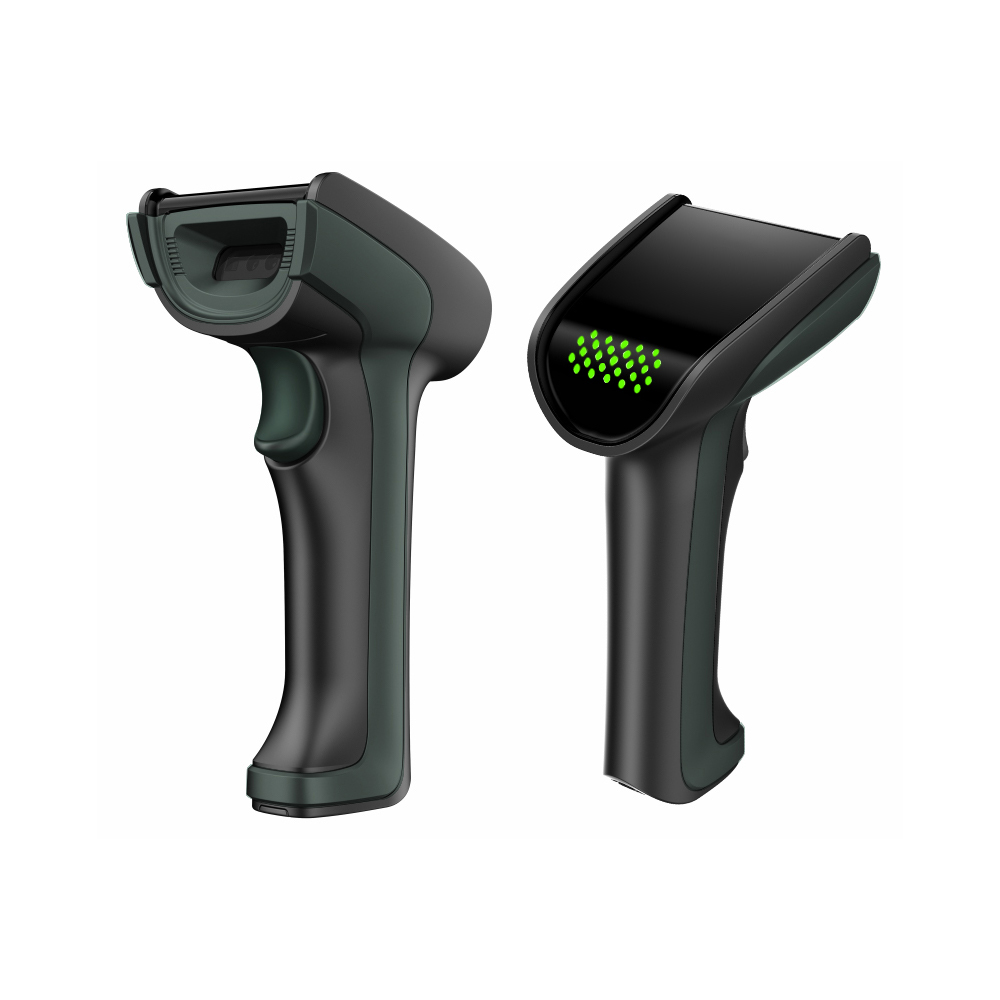

Name | DS230/2D Barcode Scanner | ||||
Use | Identify the various 1D, 2D, screen codes, etc. | ||||
Performance Parameters | |||||
Light source type | White light fill-in LED/red light LED aiming | ||||
Scanning Principle | cmos | ||||
Resolution | 1280pixels (H)×1024 pixels (V) | ||||
Interface | USB-HID, USB-COM, RS232 | ||||
Decoding Capability | 1D | Code128, Code39, Code93, EAN13, EAN8, UPC_E(E0,E1), ISBN13, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, RSS14(GS1 Databar), RSS Limited(GS1 Databar Limited), RSS Expanded(GS1 Databar Expanded), RSS14 Stack(GS1 Databar Stack), RSS Expanded(GS1Databar Expanded Stack), Codebar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K, Code49. | |||
2D | QRCode(Mode1,Mode2), MicroQR, Data Matrix, PDF417, MicroPDF417, Aztec, HanXin, Maxicode,Grid Matrix Code. | ||||
Scanning Accuracy | 1D code ≥3mil ; 2D code: ≥7.5mil TBD | Scanner size | 164.5mm*83.6mm*69.1mm | ||
Material | ABS+PC | ||||
Scan Angle | Elevation | ±60° | line length | 1.5m | |
Rotation | ±360° | Operating Temperature | -20℃~50℃ | ||
Deflection | ±60° | Storage Temperature | -40℃~70℃ | ||
Trigger mode | Manual/Continuous/Auto-inductive Scanning | Operating Humidity | 5%~95% (non-condensing) | ||
Ambient Lighting | 0~100000LUX | ||||
Scanning Depth of Field | EAN13:4~45cm(13mil) | Fall Resistance | It can withstand 3 meters of free fall | ||
Bit error rate | 1/5 million | voltage | DC5V±5% | ||
Standby Current | 124mA | Operating current | 225mA | ||
