Identify the various 1D, 2D, screen codes, etc

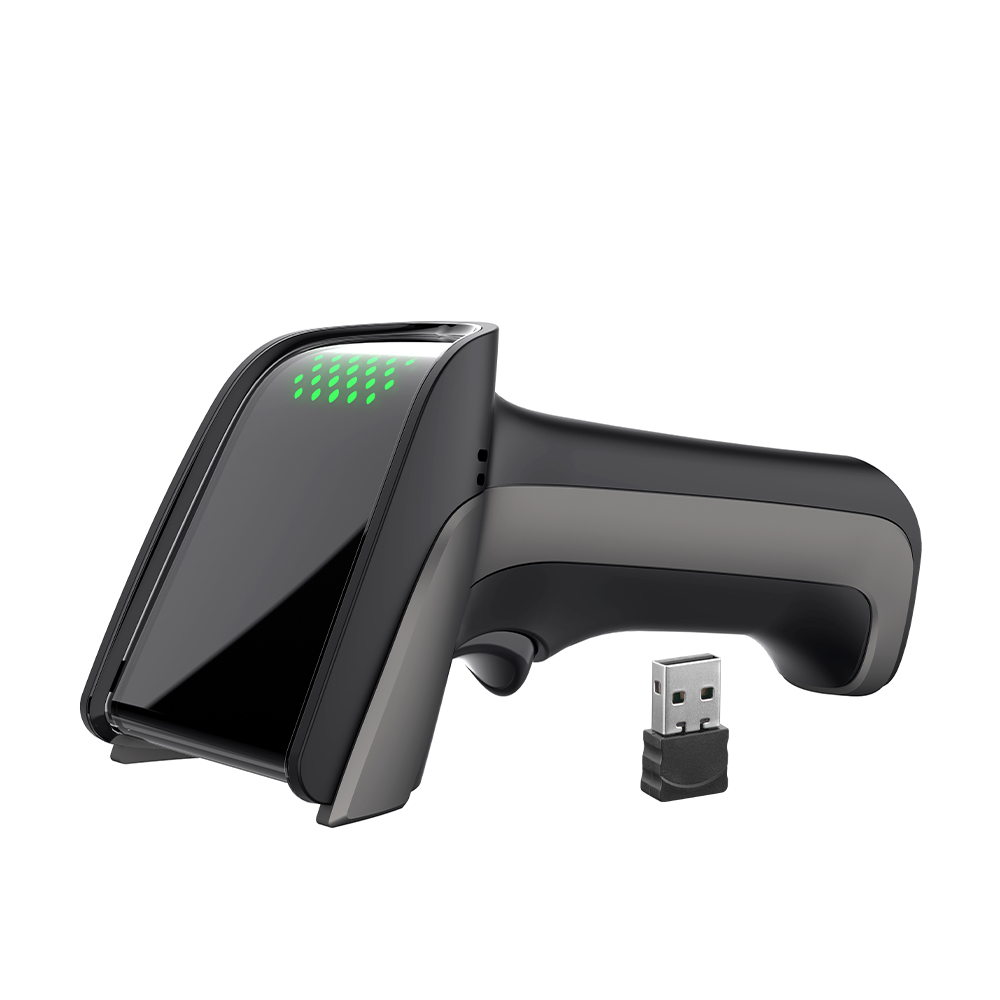

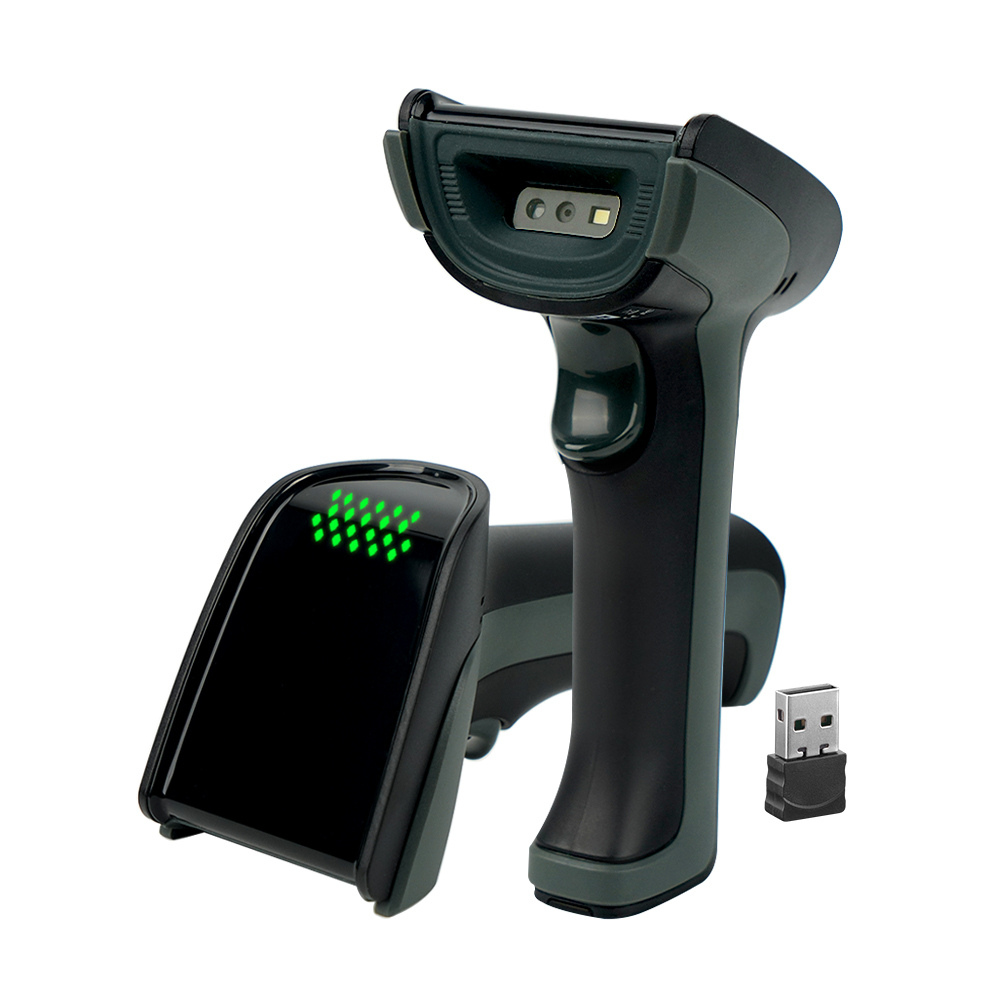

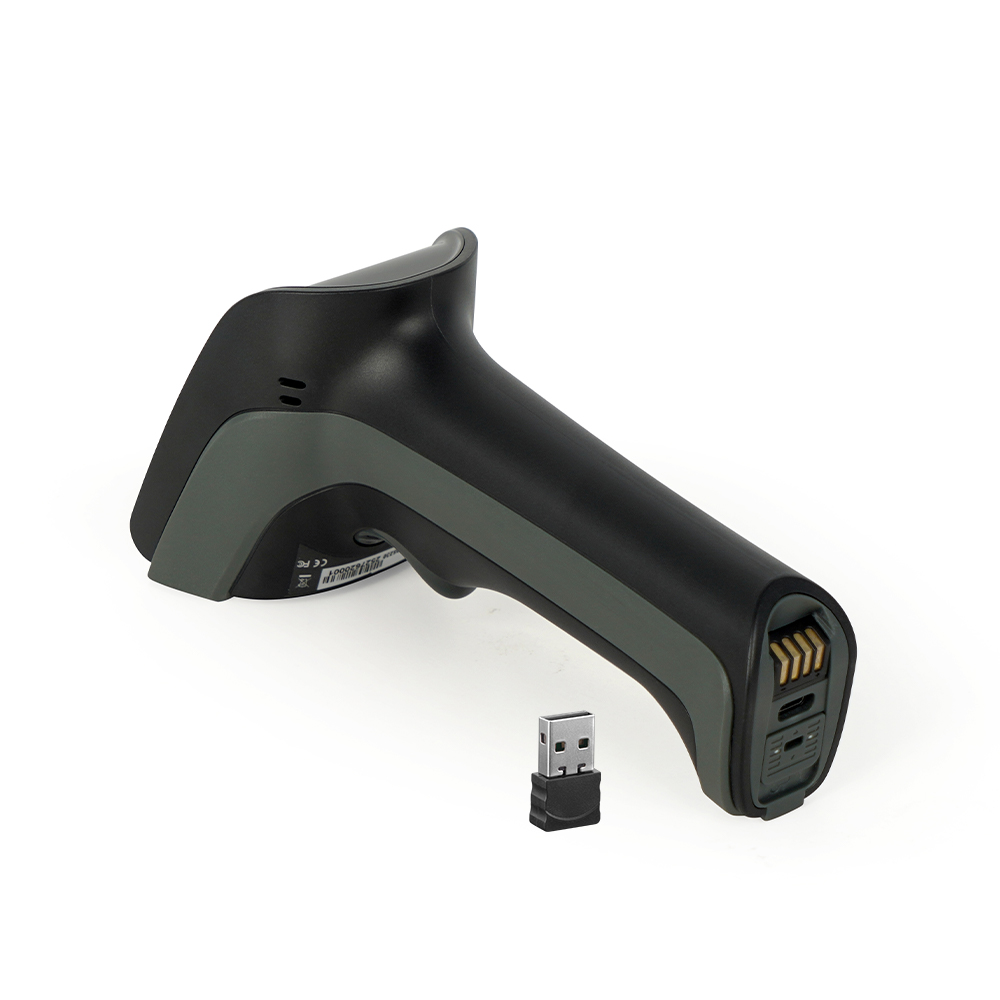

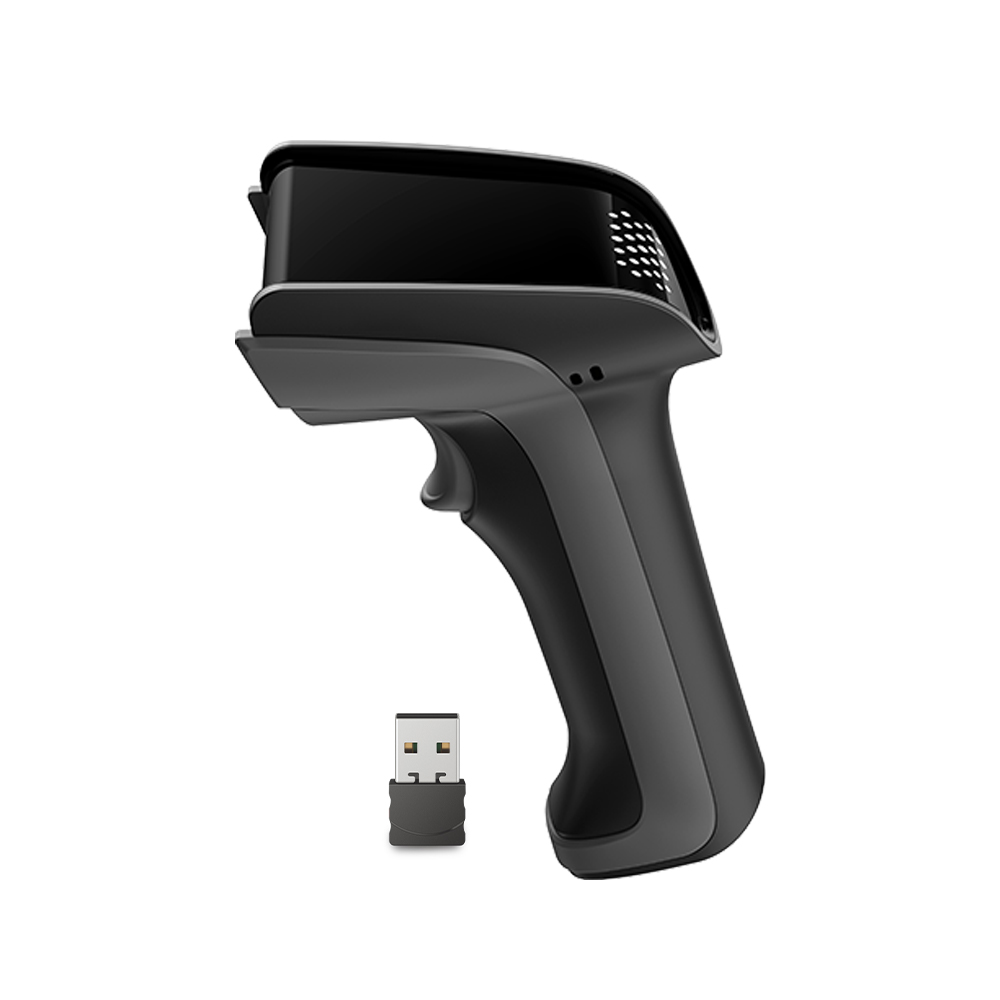

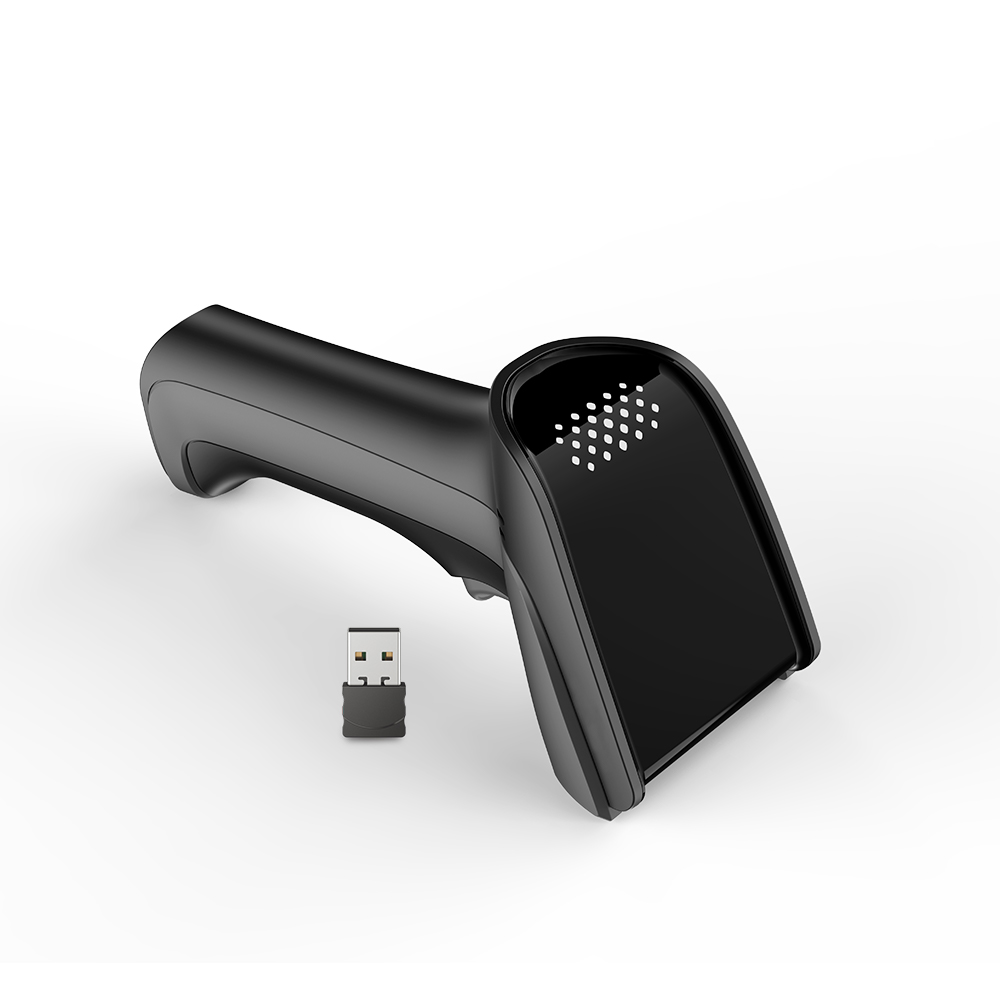

Name | DS230RB/2D 2.4G + Bluetooth Barcode Scanner | ||||
use | Identify the various 1D, 2D, screen codes, etc | ||||
Performance Parameters | |||||
Light type | White lighting, red aiming light | ||||
Decoding Capability | 1D | Code128, Code39, Code93, EAN13, EAN8, UPC_E(E0,E1), ISBN13, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, RSS14(GS1 Databar), RSS Limited (GS1 Databar Limited), RSS Expanded(GS1 Databar Expanded), RSS14 Stack(GS1 Databar Stack), RSS Expanded(GS1Databar Expanded Stack), Codebar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5, Code 16K, Code49. | |||
2D | QRCode(Mode1,Mode2), MicroQR, Data Matrix, PDF417, MicroPDF417, Aztec, HanXin, Maxicode, Grid Matrix Code. | ||||
Scanning Principle | cmos | ||||
Resolution | 1280pixels (H)×1024 pixels (V) | ||||
Interface | Receiver: USB-HID, USB-COM | ||||
Scanning Accuracy | ≥4mil | Dimension | 164.5mm*83.6mm*69mm | ||
Scanning Depth of Field | EAN13:4~350mm(13mil) | Material | ABS+PC | ||
Scan Angle | Elevation | ±60° | Cable | 1.5M straight | |
Rotation | ±360° | Operating Temperature | -20℃~50℃ | ||
Deflection | ±60° | Storage Temperature | -40℃~70℃ | ||
Contrast | ≥20% | Relative Humidity | 5%~95% (Non-condensing) | ||
Bit Error Rate | Less than 1/5 million | Ambient Lighting | 0~100000LUX | ||
Wireless Transmission Distance | 100 meters (open distance) | Drop Resistance | Withstands multiple 1.5 meter drops to concrete | ||
Scan Mode | Manual/Continuous/Auto-inductive Scanning | Voltage | DC 5V±5% | ||
Wireless Communication | Pairing dedicated receiver: 2.4G Communication Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0 | Working Current | 255mA | ||
Standby Current | 0mA(Standby means cutting off battery power) | ||||
Charging Time | 6h | ||||
Storage Mode | Offline storage mode: The scanner automatically stores data when it leaves the connection range.Storage capacity is 200K characters. | Charging Time | 3h | ||
Lithium Battery | 2200mA | ||||
Charging Mode | Type C charging cable | ||||
Pairing Mode | One to one: One scanning gun pairs one receiver One scanner paired with a bluetooth moblie device | Inventory storage mode | The scanner can enter inventory mode, with a storage capacity of 200K characters. | ||
Receiving End | Dedicated bluetooth U disk receiver, Android/IOS Moblie devices | ||||
