Barcode Scanner

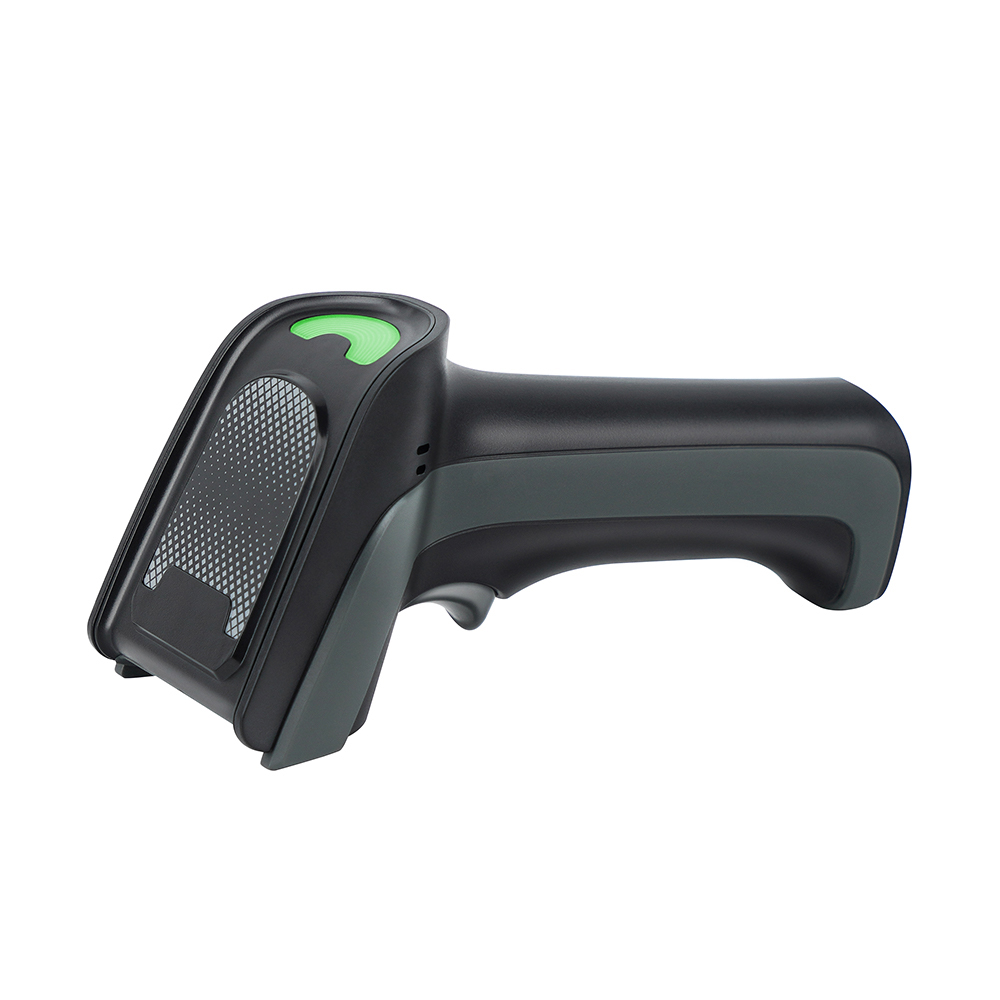

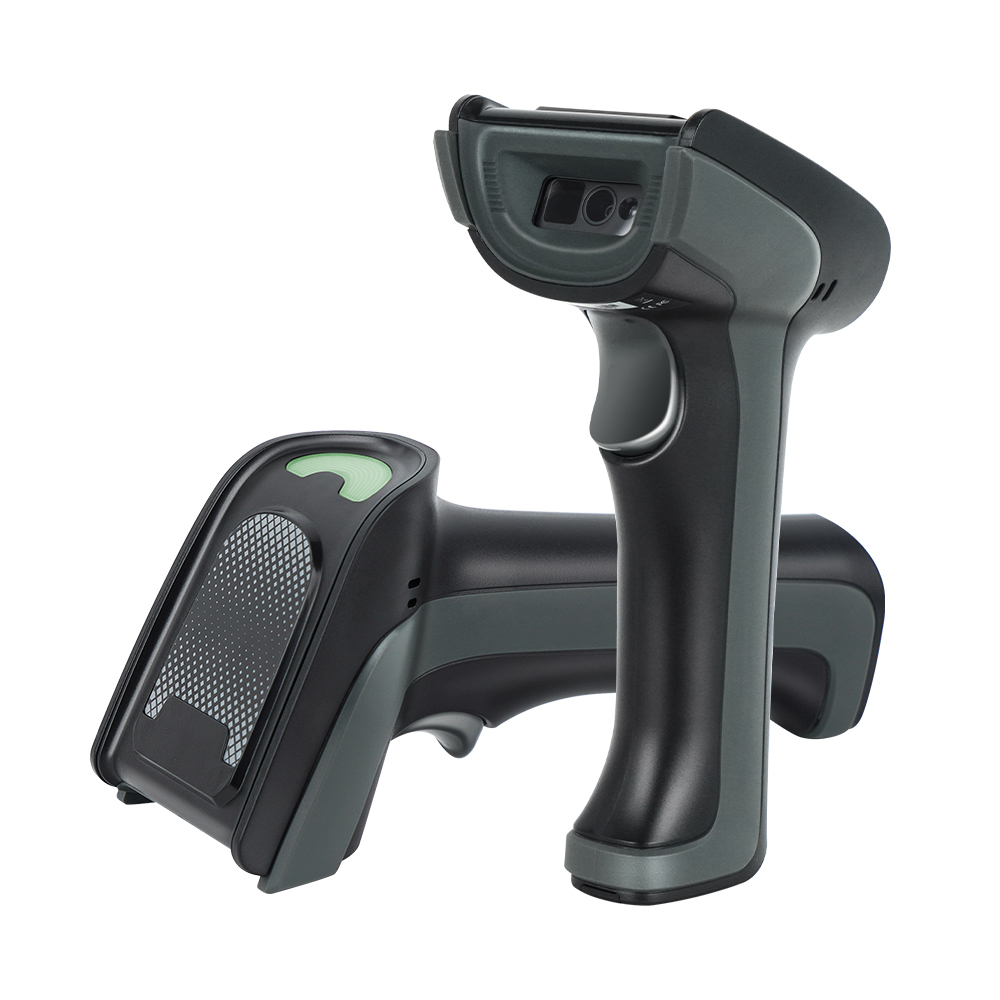

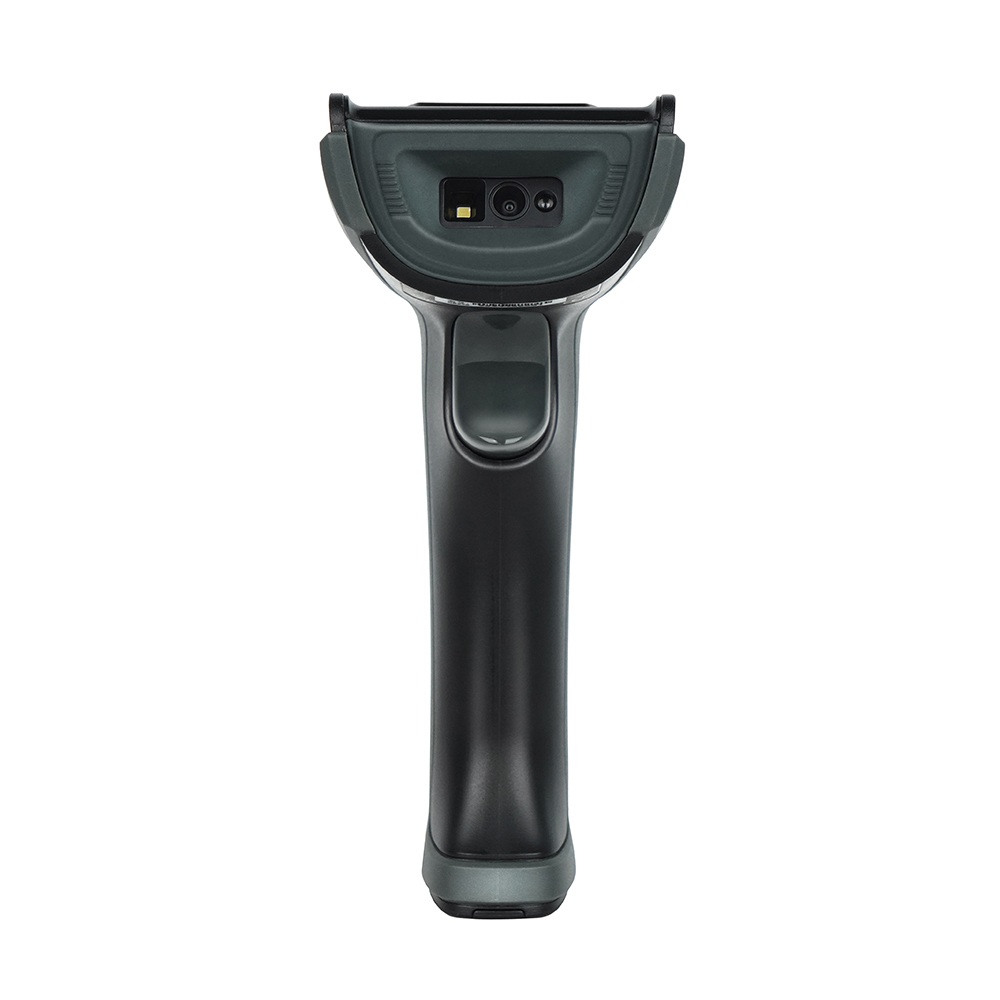

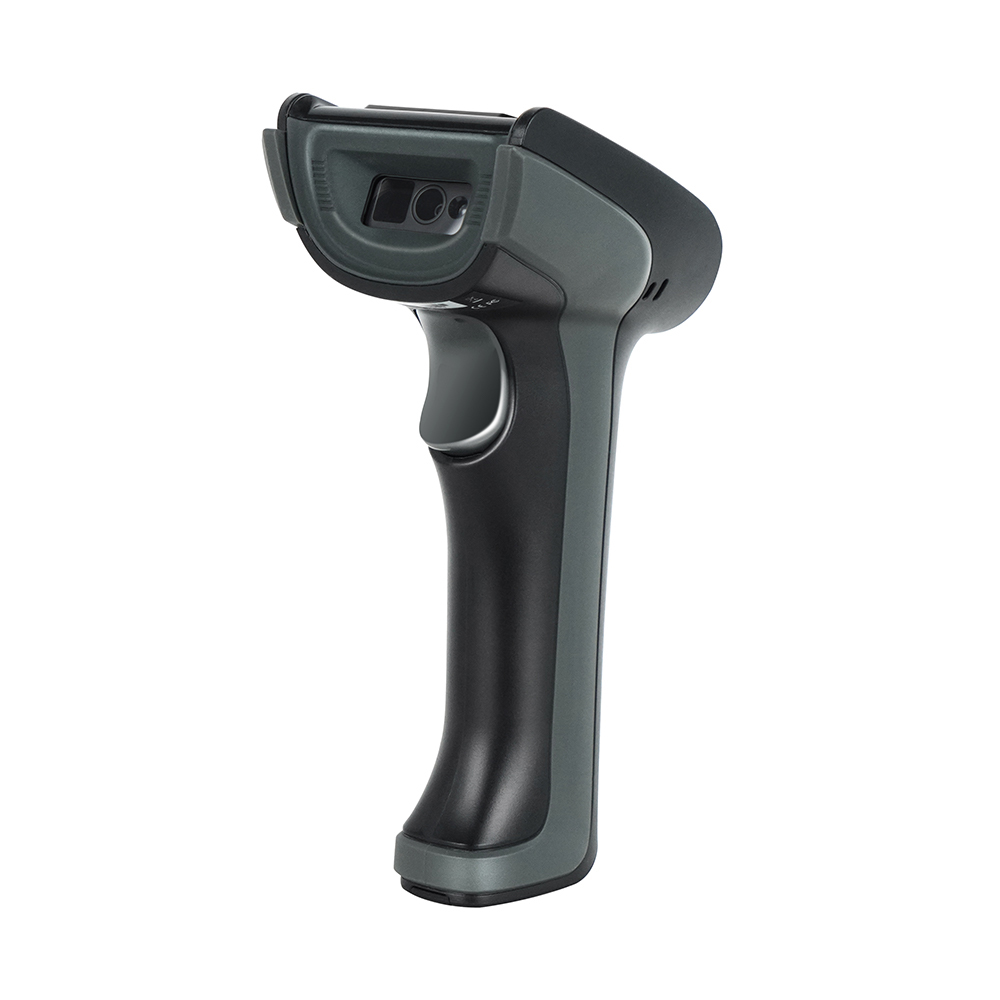

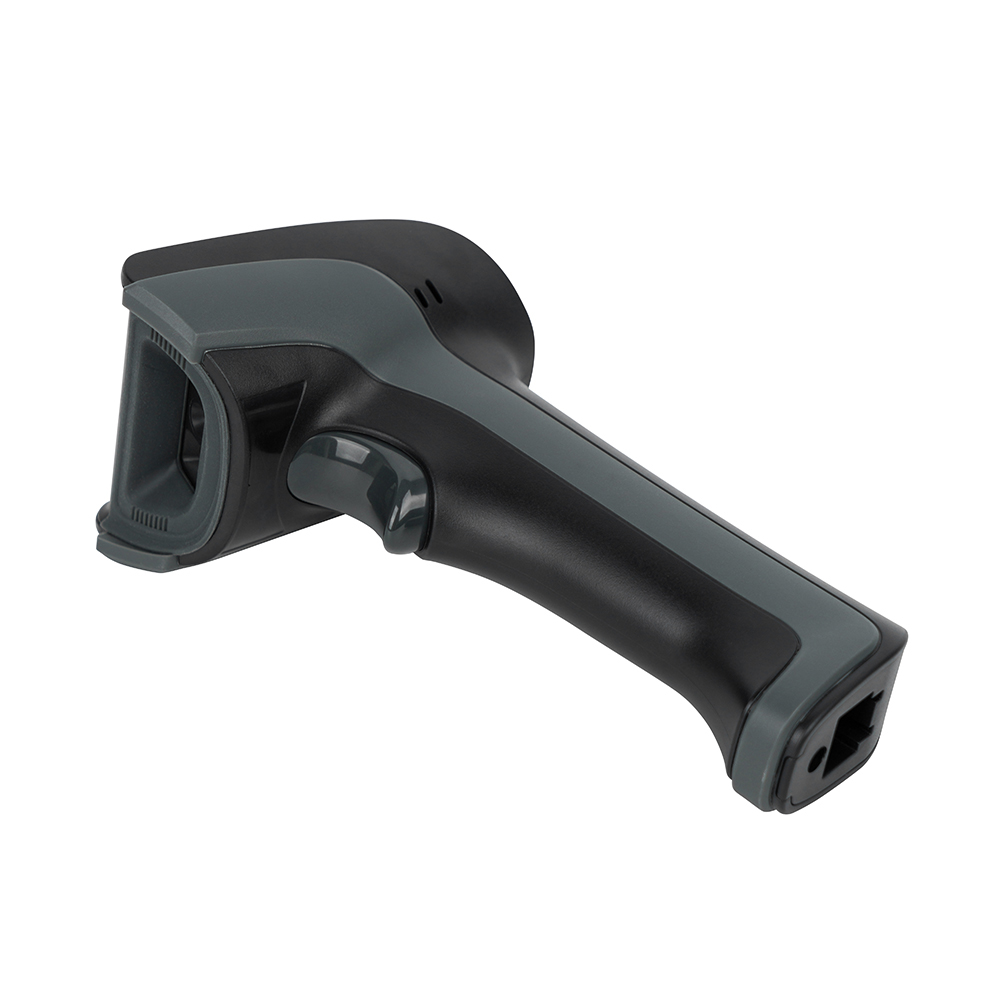

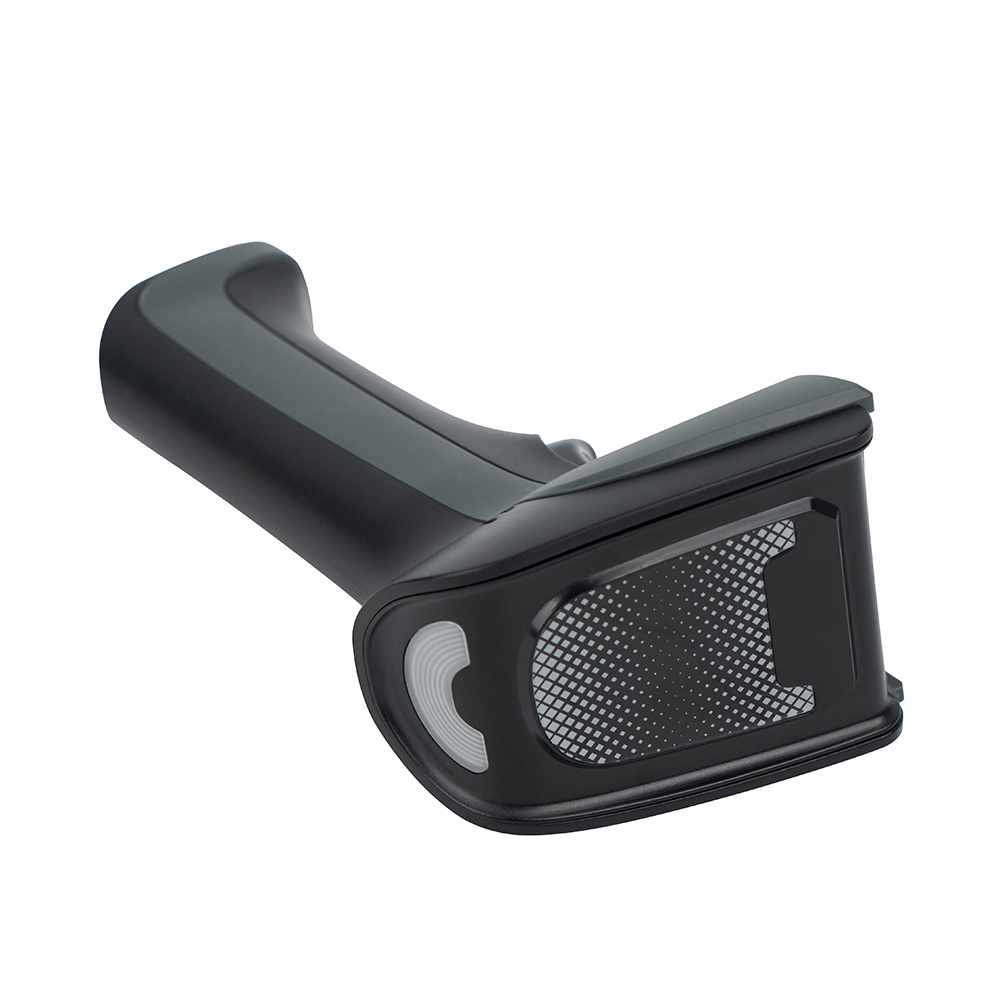

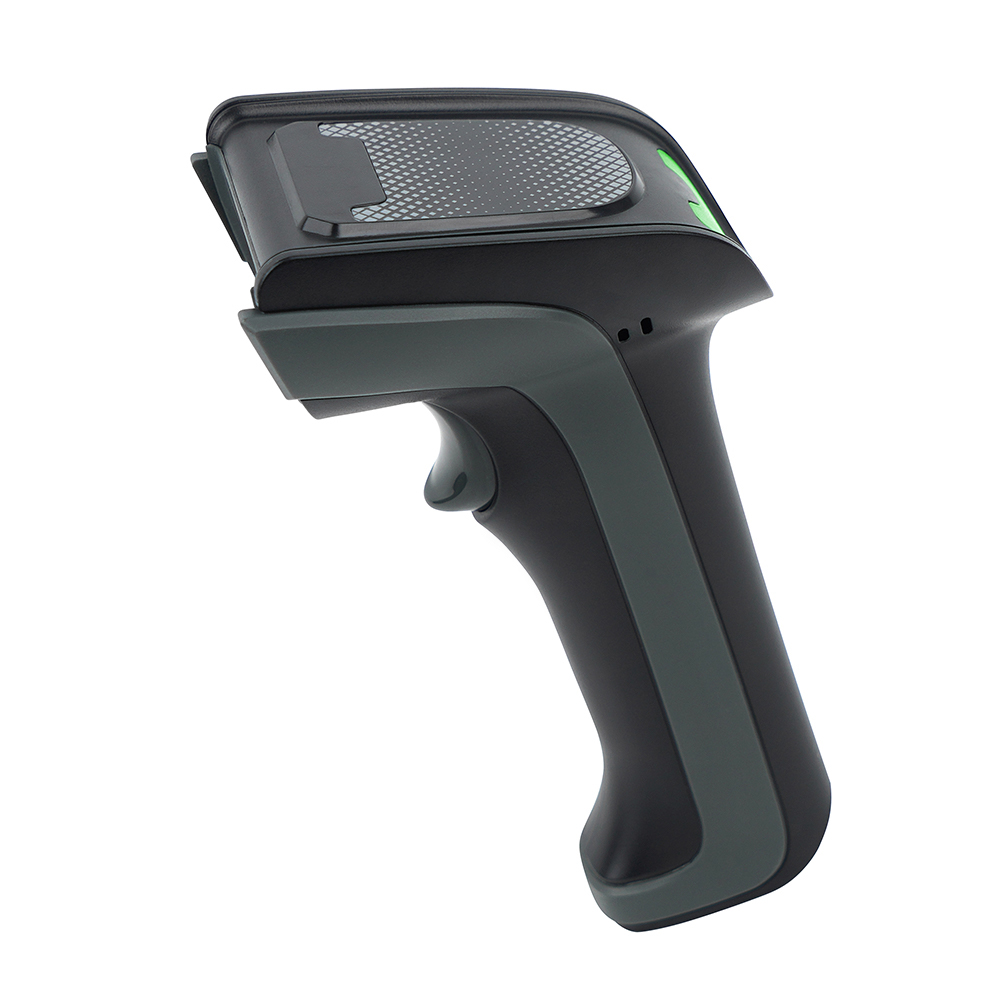

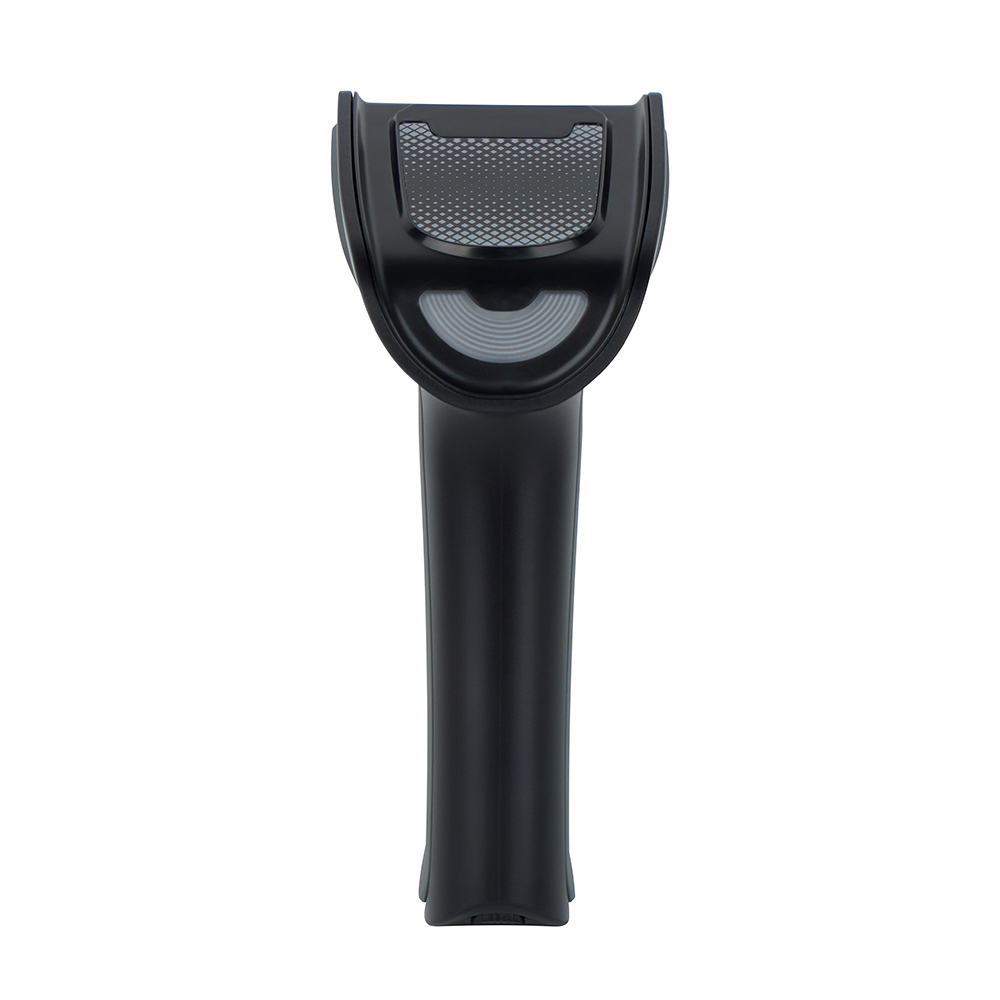

DS220/2D Barcode Scanner
Identify the various 1D, 2D, screen codes, etc.
Name | DS220/2D Barcode Scanner | ||||
Use | Identify the various 1D, 2D, screen codes, etc. | ||||
| | ||||
Performance Parameters | |||||
Light source type | White light fill LED/green light LED aiming | ||||
Scanning Principle | cmos | ||||
Resolution | 640pixels (H)×480 pixels (V) | ||||
Interface | USB-HID, USB-COM, RS232 | ||||
Decoding Capability | 1D | EAN13, EAN8, UPC-A, UPC-E0,UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, CodaBar.MSI, RSS-14, RSS-Ltd, RSS-Expand, Plessey, Standard 2 of 5, GS1 Composit. | |||
2D | PDF417, QR Code, Data Matrix, Micro QR. | ||||
Scanning Accuracy | ≥4mil | Scanner size | 69mm*83mm*164mm | ||
Scan Angle | Elevation | ±50° | Material | ABS+PC | |
Rotation | ±360° | Weight | 150g | ||
Deflection | ±50° | line length | 1.5m | ||
Trigger mode | Manual Scanning/ Continuous Scanning | Operating Temperature | -20℃~50℃ | ||
Storage Temperature | -40℃~70℃ | ||||
Scanning Depth of Field | EAN 13 50mm-240mm(13mil); | Operating Humidity | 5%~95% (non-condensing) | ||
Code39 45mm-160mm(5mil); | Ambient Lighting | 0~100000LUX | |||
QR Code 30mm-160mm(15mil); | Fall Resistance | It can withstand 1.5 meters of free fall | |||
Code 128 40mm-165mm(5mil) | voltage | DC5V±5% | |||
Error rate | 1/5 million | Operating current | 120mA | ||
